Description

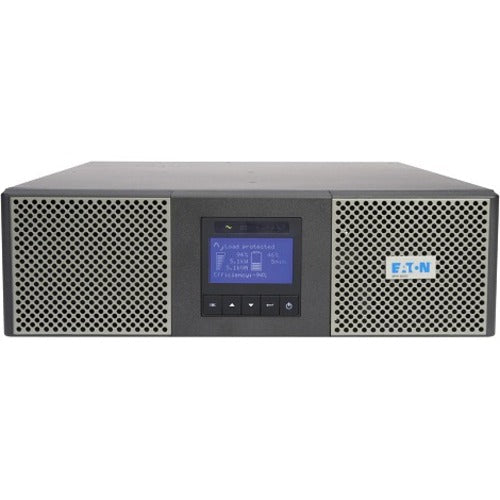

Eaton 9PX5K 5kVA UPS
| UPC | 0743172039231 |
| 3U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 2 x NEMA L6-20R, 2 x NEMA L6-30R - Serial Port - USB | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | 9PX5K |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Series: | 9PX |
| Product Name: | 9PX5K 5kVA UPS |
| Marketing Information: |
5kVA/4.5kW/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX5K is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT, sold separately) for hours of extended runtime. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don’t have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components Two L6-20R and two L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX5K also supports hardwired output. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA L6-30P |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Transfer Time: | 0 ns |
| Overload Protection: | Yes | Power Description |
| Load Capacity (VA): | 5 kVA |
| Input Voltage: |
|
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz | Management |
| Network Management: | SNMP Manageable |
| Bypass Switch: | Optional |
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| USB: | Yes | Battery Information |
| Battery Characteristics: | Maintenance-free/Sealed |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 3 Minute |
| Backup/Run Time (Half Load): | 11 Minute | Physical Characteristics |
| Form Factor: | Rack/Tower |
| Rack Height: | 3U |
| Height: | 5.10″ (129.54 mm) |
| Width: | 17″ (431.80 mm) |
| Depth: | 28″ (711.20 mm) |
| Weight (Approximate): | 105.82 lb (48000 g) | Miscellaneous |
| Package Contents: |
|
| Software Included: | Eaton Intelligent Power Software |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
