The discontinued 9130 family is replaced by the 9PX line, so a new battery can restore autonomy without restoring long-term platform support. Equipment record: Eaton PW9130L3000R-XL2UN, companion identifier Eaton 9PX3000RTN. Decision: Use a battery replacement as a dated bridge only when the PW9130L3000R-XL2UN electronics pass, the 1,350 W worked load meets the required runtime, and a 9PX3000RTN migration date is retained.
A battery can bridge, not modernize
A legacy UPS can pass an electrical check and still carry lifecycle risk in fans, capacitors, relays, firmware and communications support. The bridge decision therefore joins a present-condition test to a dated replacement path. The battery is not used to erase the age of the electronics.
For Eaton PW9130L3000R-XL2UN, the applicability boundary is anchored to 3000 VA, 2700 W and part Eaton 9PX3000RTN. The 2 worked inputs remain assumptions until they are recorded at the equipment.
Use Eaton 9130 lifecycle service information to arrange service for Eaton PW9130L3000R-XL2UN; confirm the complete equipment label before booking.
Figure 1. Eaton PW9130L3000R-XL2UN equipment and power path
PW9130L3000R-XL2UN and 9PX3000RTN mapping
The controlling numerical record is: 9130 apparent-power class: 3000 VA; 9130 real-power class: 2700 W; North American output class: 120 V; Worked protected load: 1350 W; Worked maximum bridge period: 12 months; Legacy and replacement comparison: 2 platforms. Each value has a defined source or assumption status in the engineering ledger. Values from different configurations are not combined as though they came from one installed system.
| Engineering parameter | Value | Evidence status |
|---|---|---|
| 9130 apparent-power class | 3000 VA | Published OEM value |
| 9130 real-power class | 2700 W | Published OEM value |
| North American output class | 120 V | Published OEM value |
| Worked protected load | 1350 W | Worked design assumption |
| Worked maximum bridge period | 12 months | Worked design assumption |
| Legacy and replacement comparison | 2 platforms | Published OEM value |
The 1,350 W worked load is half of the 9130’s 2,700 W real-power class. That leaves load margin for a controlled battery test, but it does not predict autonomy. The runtime target must come from the exact battery configuration and measured load.
A 1,350 W load at 50 percent
The worked check uses load fraction = 1,350 W / 2,700 W. With a 1,350 W worked load and the 2,700 W platform class, the result is 50% load. The bridge is rejected if the approved runtime is not demonstrated at the confirmed load. The arithmetic is reproducible, but it remains a design check until the listed inputs are confirmed at the equipment.
The 50% load result follows from load fraction = 1,350 W / 2,700 W. If the 1350 W input changes, this check is repeated rather than carrying the earlier result into a different operating state.
Figure 2. Quantified basis for the Eaton PW9130L3000R-XL2UN decision
Conditions for a bounded battery bridge
Electronics inspection covers event history, cooling, charger, bypass or transfer behaviour, output regulation and communications needed by the site. A failed electronics check moves directly to migration rather than adding a new battery to an unstable platform.
The migration record maps receptacles, network management, shutdown software, rack depth and input circuit from PW9130L3000R-XL2UN to Eaton’s published 9PX3000RTN replacement. A battery bridge remains temporary because those integration tasks have an owner and date.
| Path | Technical consequence | Disposition |
|---|---|---|
| Apply the stated engineering decision | Use a battery replacement as a dated bridge only when the PW9130L3000R-XL2UN electronics pass, the 1,350 W worked load meets the required runtime, and a 9PX3000RTN migration date is retained. | Selected basis |
| Generic model substitution | Select by family name or rating alone, without confirming the exact configuration. | Not selected on the stated evidence |
| Unverified operating assumption | Treat a design assumption as though it were a site measurement. | Reconsider only if the input changes |
Eaton and Powerware UPS service across Canada covers field measurements and service work for Eaton PW9130L3000R-XL2UN.
Confirm availability and catalogue details for Eaton PW9130L3000R-XL2UN or Eaton 9PX3000RTN on the Powerware and legacy Eaton battery options page.
The Eaton PW9130L3000R-XL2UN decision retains part Eaton 9PX3000RTN, the 50% load calculation result and the manufacturer-published 3000 VA point in one equipment record. Applicable OEM instructions, qualified electrical authority and the installed single-line or wiring record remain controlling for any executable work.
Autonomy test and migration trigger
Acceptance of Eaton PW9130L3000R-XL2UN depends on five recorded checks:
- Confirm the PW9130L3000R-XL2UN nameplate, battery arrangement and 120 V circuit.
- Inspect charger, cooling, output and event history before battery work.
- Measure the protected watts and repeat the 50 percent load check.
- Run the approved autonomy test after full recharge.
- Retain the 9PX3000RTN migration date and trigger conditions in the asset record.
The Eaton PW9130L3000R-XL2UN record is not accepted if part Eaton 9PX3000RTN does not match, the calculation does not reproduce 50% load, or the final operating state is not recorded. The equipment returns to the approved safe state when a check stops, and the unresolved condition remains open without an invented repair result.

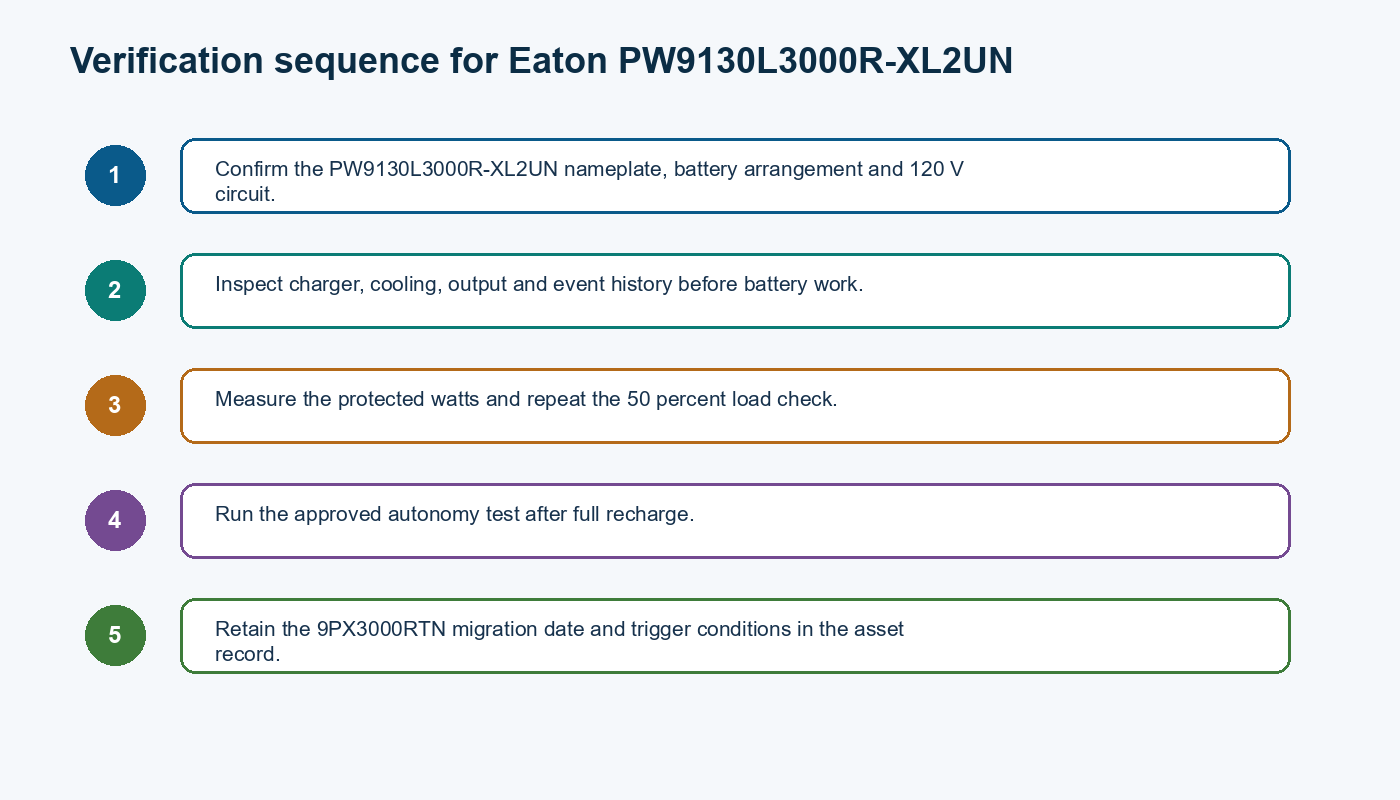

Figure 3. Verification sequence for Eaton PW9130L3000R-XL2UN
The bridge expires on evidence or date
A successful battery test can support a short PW9130L3000R-XL2UN bridge at the confirmed load. It does not reverse the discontinued status or remove the 9PX3000RTN migration trigger.
Decision rule: Use a battery replacement as a dated bridge only when the PW9130L3000R-XL2UN electronics pass, the 1,350 W worked load meets the required runtime, and a 9PX3000RTN migration date is retained. A different model, load, voltage, battery string, software version or operating state requires a new check against the applicable manufacturer record.
