Classifying an Eaton 93PM 480 VDC battery bank before an outage test

Two 40-block strings and a 5 percent impedance outlier set the investigation threshold

Trademark notice: This site is not affiliated with, endorsed by, or sponsored by the manufacturer. Product names and trademarks are the property of their respective owners.

The worked 93PM bank uses two strings of 40 nominal 12 V blocks, producing a 480 VDC design string before manufacturer-specific float settings are applied. Equipment record: Eaton 93PM-50-1, companion identifier Eaton 93PM IBC-SW 480 V. Decision: Defer the 93PM outage test until every assumed 40-block string is verified, temperature and float data are stable, and impedance outliers above the approved baseline threshold are resolved.

Two strings must be evaluated separately

A battery self-test does not identify a loose connection or one high-impedance block in a large external bank. The condition assessment joins visual inspection, temperature, float voltage, connection resistance or torque record, impedance trend and event history. All worked bank values remain assumptions until the nameplates and drawings are confirmed.

For Eaton 93PM-50-1, the applicability boundary is anchored to 50 kW, 5 % over baseline and part Eaton 93PM IBC-SW 480 V. The 6 worked inputs remain assumptions until they are recorded at the equipment.

Use Eaton 93PM service and battery planning to arrange service for Eaton 93PM-50-1; confirm the complete equipment label before booking.

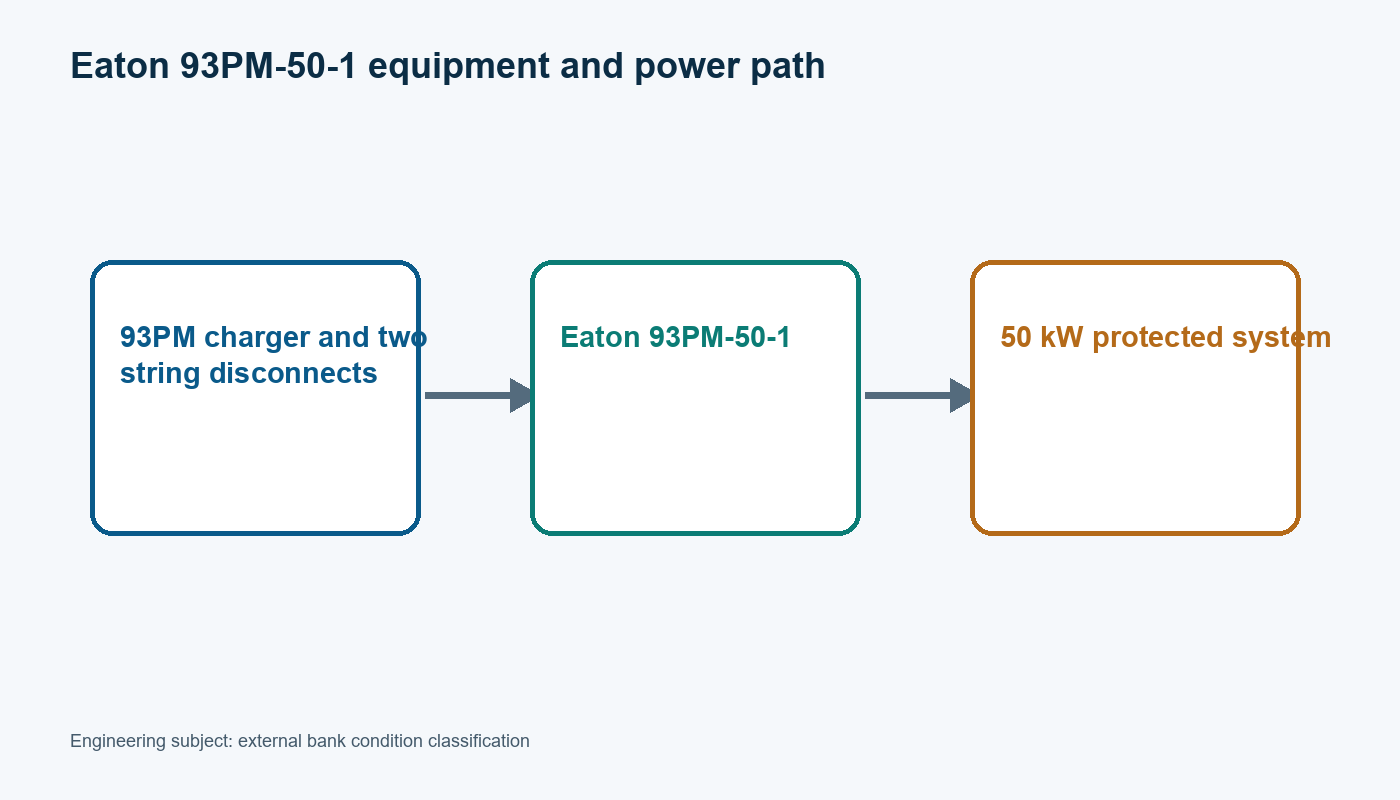

Figure 1. Eaton 93PM-50-1 equipment and power path

The 480 VDC worked bank

The controlling numerical record is: Worked UPS frame: 50 kW; Worked series count: 40 blocks/string; Nominal block voltage: 12 V/block; Worked string voltage: 480 VDC; Worked bank count: 2 parallel strings; Worked reference temperature: 25 degrees C; Worked impedance investigation threshold: 5 % over baseline. Each value has a defined source or assumption status in the engineering ledger. Values from different configurations are not combined as though they came from one installed system.

Forty nominal 12 V blocks create 480 VDC per string. Two strings add current capacity but remain separate series paths for measurement. A five percent threshold is a worked investigation rule, not an Eaton acceptance limit, and must be replaced by the approved battery-manufacturer baseline.

Finding a 5 percent impedance outlier

The worked check uses nominal string voltage = 40 x 12 V; outlier threshold = baseline x 1.05. With 40 blocks and a five percent worked trend threshold, the result is 480 VDC and a 1.05 baseline multiplier. Any block or connection above the approved threshold is investigated before a discharge test. The arithmetic is reproducible, but it remains a design check until the listed inputs are confirmed at the equipment.

The 480 VDC and a 1.05 baseline multiplier result follows from nominal string voltage = 40 x 12 V; outlier threshold = baseline x 1.05. If the 40 blocks/string input changes, this check is repeated rather than carrying the earlier result into a different operating state.

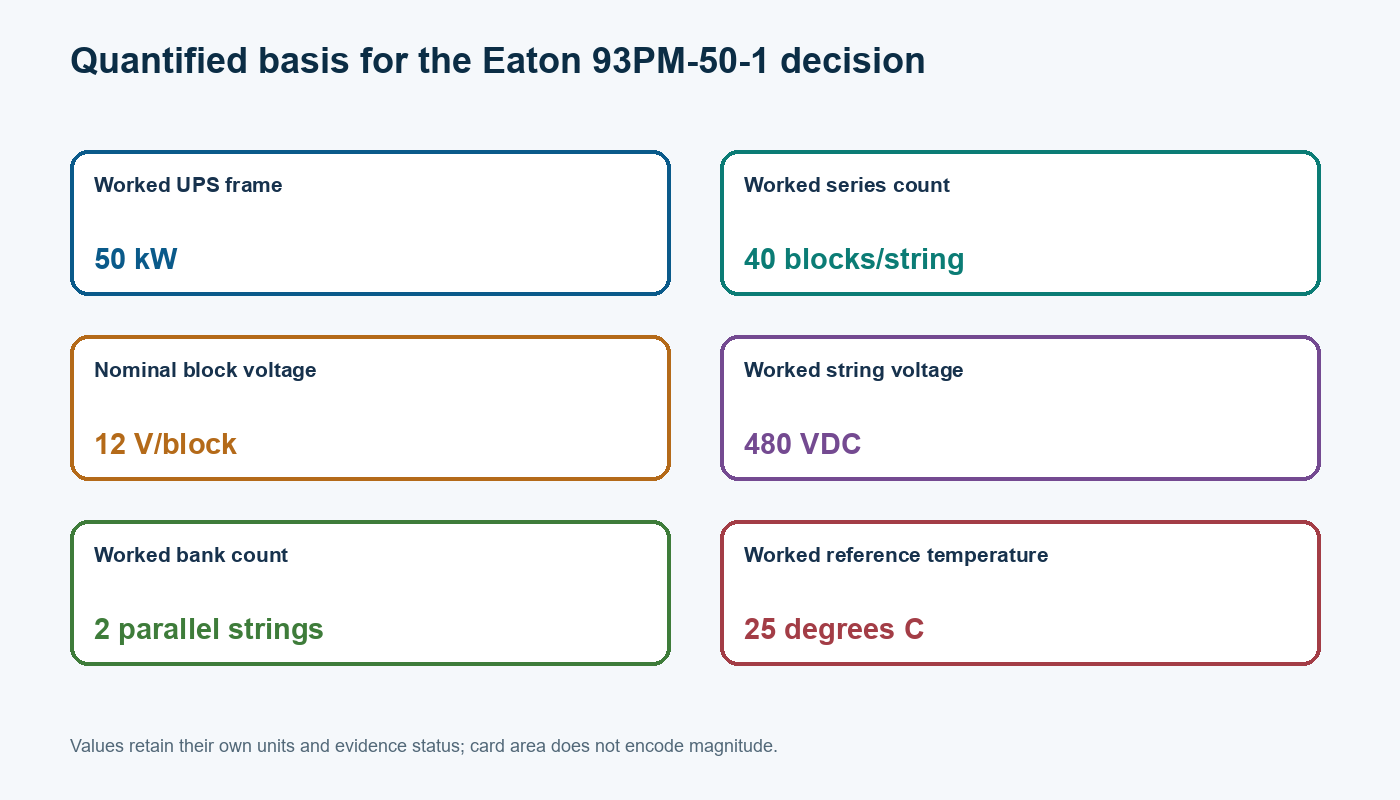

Figure 2. Quantified basis for the Eaton 93PM-50-1 decision

Condition evidence before discharge

String measurements are compared within the same temperature and state of charge. A high reading collected immediately after recharge is not compared with an older settled baseline as though conditions were equal.

An outage test is deferred for swelling, leakage, corrosion, abnormal temperature, open monitoring points, unresolved charger alarms or material impedance spread. Qualified authority also confirms that the load and bypass arrangement can tolerate the planned test state.

Eaton and Powerware UPS service across Canada covers field measurements and service work for Eaton 93PM-50-1.

Confirm availability and catalogue details for Eaton 93PM-50-1 or Eaton 93PM IBC-SW 480 V on the Eaton battery and EBM research page.

The Eaton 93PM-50-1 decision retains part Eaton 93PM IBC-SW 480 V, the 480 VDC and a 1.05 baseline multiplier calculation result and the manufacturer-published 50 kW point in one equipment record. Applicable OEM instructions, qualified electrical authority and the installed single-line or wiring record remain controlling for any executable work.

Controlled test prerequisites

Acceptance of Eaton 93PM-50-1 depends on five recorded checks:

• Confirm the 93PM-50-1 frame, IBC-SW 480 V cabinet, battery model and 240-cell arrangement.
• Measure both worked strings at comparable charge and temperature conditions.
• Replace the worked five percent rule with the approved battery-manufacturer baseline threshold.
• Resolve block, connector, monitoring and charger anomalies before discharge.
• Use Eaton-authorized startup and service controls for the subsequent outage test.

The Eaton 93PM-50-1 record is not accepted if part Eaton 93PM IBC-SW 480 V does not match, the calculation does not reproduce 480 VDC and a 1.05 baseline multiplier, or the final operating state is not recorded. The equipment returns to the approved safe state when a check stops, and the unresolved condition remains open without an invented repair result.

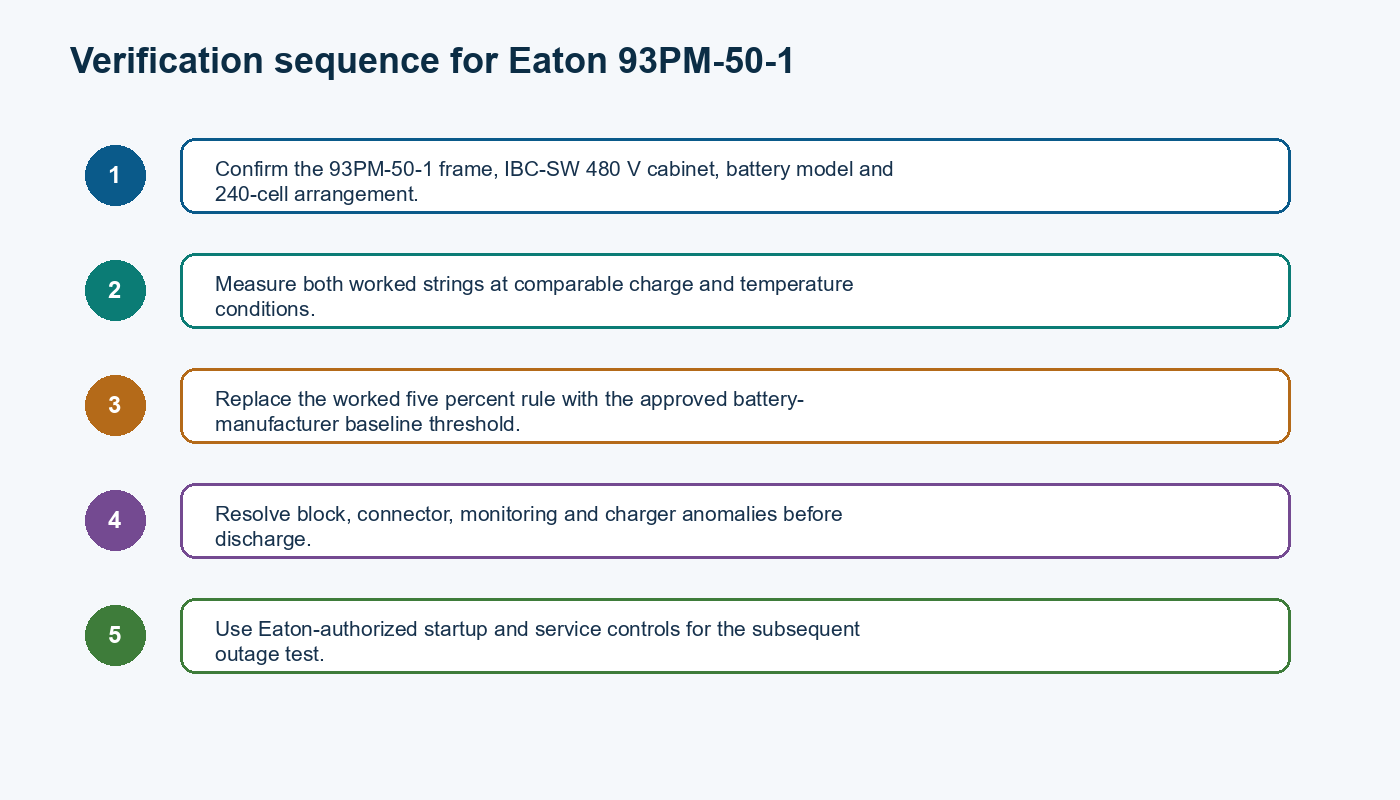

Figure 3. Verification sequence for Eaton 93PM-50-1

Outage testing waits for a stable bank

The 480 VDC arithmetic defines the worked bank, while condition evidence determines whether it can be discharged. The test remains deferred when the exact string design or any material outlier is unresolved.

Decision rule: Defer the 93PM outage test until every assumed 40-block string is verified, temperature and float data are stable, and impedance outliers above the approved baseline threshold are resolved. A different model, load, voltage, battery string, software version or operating state requires a new check against the applicable manufacturer record.
