Eaton 9395 modular growth at CoSentry’s 250 kVA threshold

Two 250 kVA UPMs left a third-module path and 30 kVA of worked module-out margin

Trademark notice: This site is not affiliated with, endorsed by, or sponsored by the manufacturer. Product names and trademarks are the property of their respective owners.

Eaton reports a 500 kVA 9395 built with two 250 kVA UPMs and provision for a third module at CoSentry. Equipment record: Eaton Power Xpert 9395 500 kVA, companion identifier 250 kVA UPM. Decision: Operate the two-UPM 9395 as a redundant 250 kVA system only while the protected load stays below one 250 kVA UPM, then add the third module before the threshold is consumed.

Five hundred installed, 250 surviving

The modernization replaced an older 150 kVA UPS and created a staged growth path. Two UPMs provide 500 kVA installed, but module-out redundancy is governed by the 250 kVA surviving unit. Eaton reports a plan to add the third module as load approaches the 250 kVA threshold.

For Eaton Power Xpert 9395 500 kVA, the applicability boundary is anchored to 500 kVA, 2 UPMs and part 250 kVA UPM. One worked input remains an assumption until it is recorded at the equipment.

Use Power Xpert 9395 service information to arrange service for Eaton Power Xpert 9395 500 kVA; confirm the complete equipment label before booking.

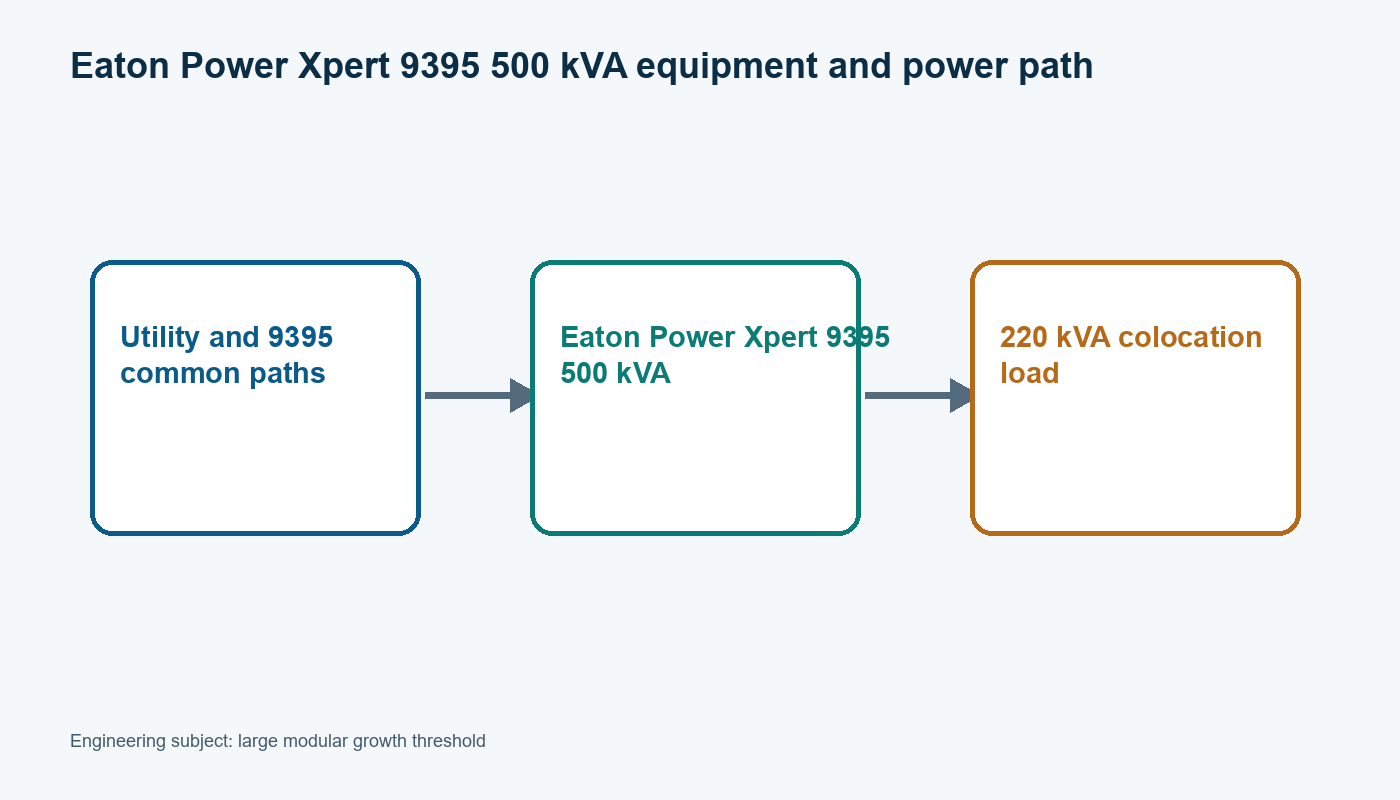

Figure 1. Eaton Power Xpert 9395 500 kVA equipment and power path

UPM count, efficiency and test loading

The controlling numerical record is: Installed two-UPM rating: 500 kVA; Initial module count: 2 UPMs; Module rating: 250 kVA/UPM; Reported efficiency above: 94 %; Worked protected load: 220 kVA; Easy Capacity Test stress point: 60 % test; Third-module provision: 1 future UPM. Each value has a defined source or assumption status in the engineering ledger. Values from different configurations are not combined as though they came from one installed system.

At a worked 220 kVA, one 250 kVA UPM can carry the load with 30 kVA margin. The two installed modules show 500 kVA total, but 280 kVA of that total is not usable as redundant headroom. The third UPM restores growth margin after the load approaches 250 kVA.

Thirty kVA below one-module capacity

The worked check uses module-out margin = 250 kVA - 220 kVA. With one surviving 250 kVA UPM and a 220 kVA worked load, the result is 30 kVA margin. The third module is required before load reaches 250 kVA if one-module-out continuity is to remain. The arithmetic is reproducible, but it remains a design check until the listed inputs are confirmed at the equipment.

The 30 kVA margin result follows from module-out margin = 250 kVA - 220 kVA. If the 220 kVA input changes, this check is repeated rather than carrying the earlier result into a different operating state.

Figure 2. Quantified basis for the Eaton Power Xpert 9395 500 kVA decision

Why the third bay matters before growth

The Easy Capacity Test feature can exercise the UPS internally without renting a full external load bank for every test point. Eaton reports the ability to stress at 60 percent rather than an earlier 30 percent approach. Site procedures still define the approved test state and protective settings.

Growth monitoring uses kVA, kW, phase balance, module loading and trend rate. A single peak is investigated, while sustained approach to the one-module threshold advances the third-UPM project before redundancy is lost.

Eaton and Powerware UPS service across Canada covers field measurements and service work for Eaton Power Xpert 9395 500 kVA.

Confirm availability and catalogue details for Eaton Power Xpert 9395 500 kVA or 250 kVA UPM on the current Eaton UPS and battery research page.

The Eaton Power Xpert 9395 500 kVA decision retains part 250 kVA UPM, the 30 kVA margin calculation result and the manufacturer-published 500 kVA point in one equipment record. Applicable OEM instructions, qualified electrical authority and the installed single-line or wiring record remain controlling for any executable work.

Easy Capacity Test and module-out proof

Acceptance of Eaton Power Xpert 9395 500 kVA depends on five recorded checks:

• Confirm the 500 kVA frame, two 250 kVA UPMs and open third-module position.
• Measure protected kVA, kW and phase balance against one surviving UPM.
• Repeat the 30 kVA worked margin with current load data.
• Prove the approved Easy Capacity Test and module-out response.
• Set a dated third-UPM trigger below the 250 kVA redundancy ceiling.

The Eaton Power Xpert 9395 500 kVA record is not accepted if part 250 kVA UPM does not match, the calculation does not reproduce 30 kVA margin, or the final operating state is not recorded. The equipment returns to the approved safe state when a check stops, and the unresolved condition remains open without an invented repair result.

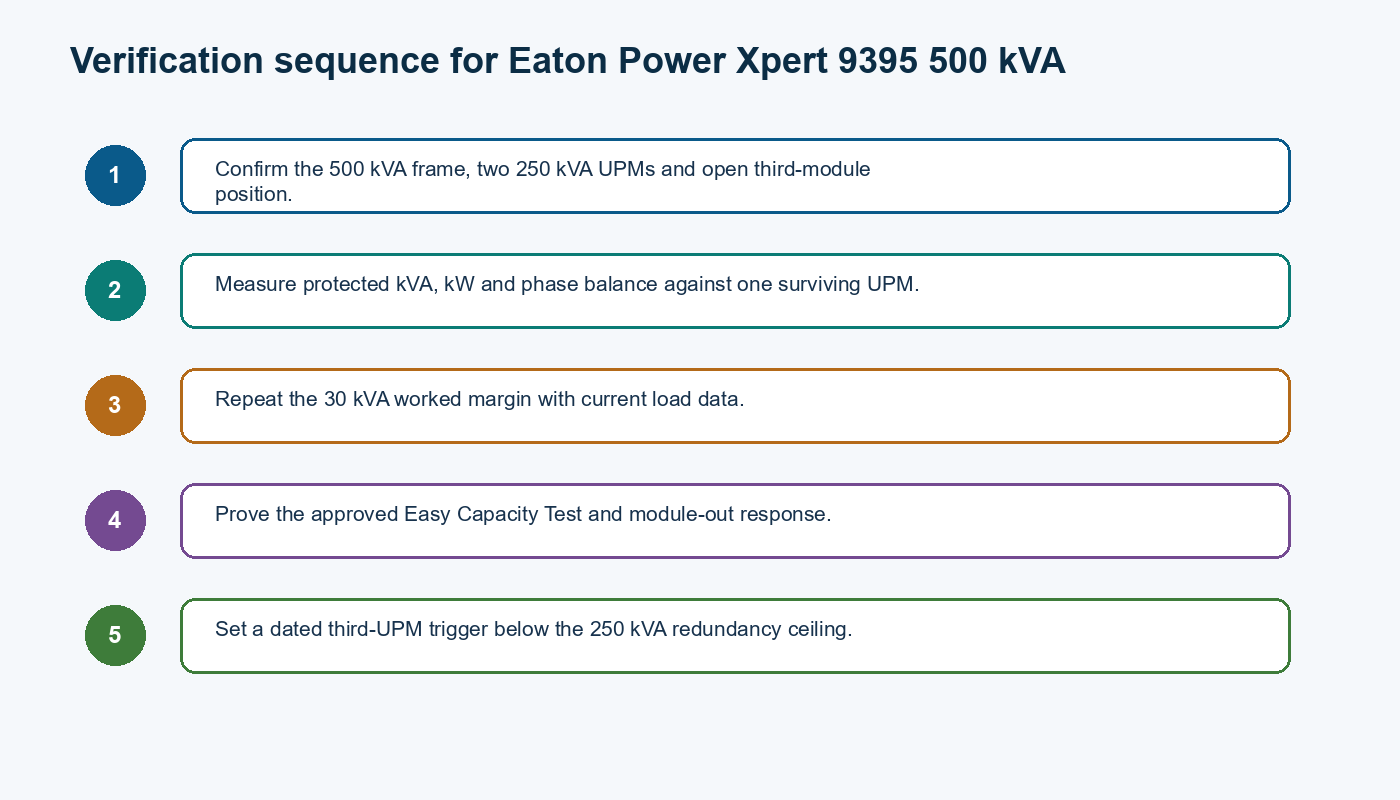

Figure 3. Verification sequence for Eaton Power Xpert 9395 500 kVA

The threshold is a redundancy limit

At 220 kVA, the two-module 9395 retains 30 kVA of one-module-out margin. The 500 kVA installed label is not the redundant load limit; 250 kVA is.

Decision rule: Operate the two-UPM 9395 as a redundant 250 kVA system only while the protected load stays below one 250 kVA UPM, then add the third module before the threshold is consumed. A different model, load, voltage, battery string, software version or operating state requires a new check against the applicable manufacturer record.
