Eaton BladeUPS 8kW Rack-mountable UPS - ZC0811108100000

Name: Eaton BladeUPS 8kW Rack-mountable UPS - ZC0811108100000
Brand: Eaton
SKU: ZC0811108100000
Price: 23319.00 CAD
Availability: InStock

$23,319.00 CAD plus applicable taxes

Eaton BladeUPS 8kW Rack-mountable UPS Manufacturer Part No. : ZC0811108100000 UPC : 743172068415 6U Rack-mountable - 9 Minute Stand-by - 208 V AC Input - 208 V AC Output General Information Manufacturer: Eaton Corporation Manufacturer Part Number: ZC0811108100000 Manufactu

Email for Quote: ZC0811108100000 Call 1 (438) 800-0382

Replies within 4 business hours · Nationwide on-site installation available

SKU: ZC0811108100000 Categories: BladeUPS UPS Systems, UPS Systems

Not sure this fits your UPS? Email your Eaton model for a free fitment check before you order.

Description

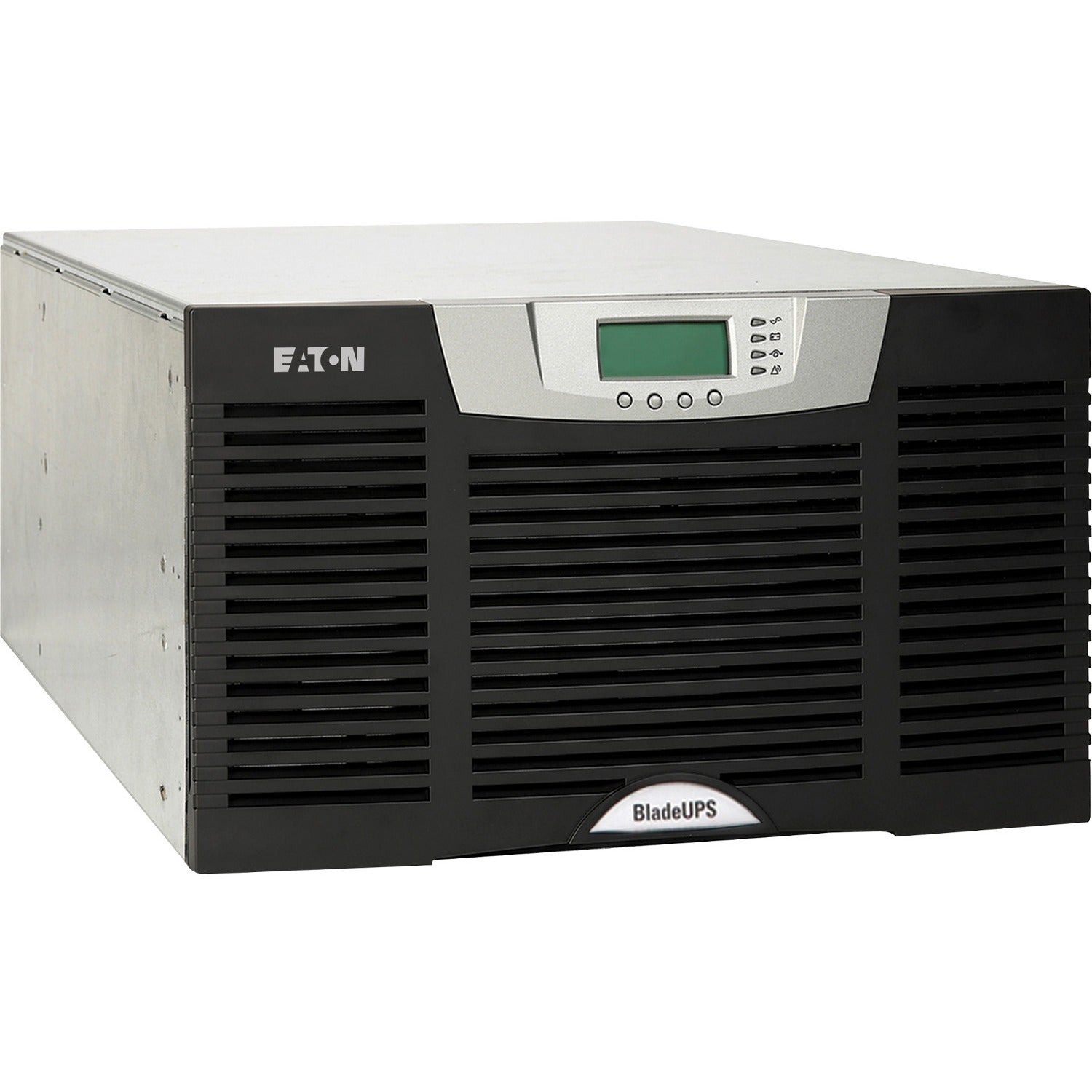

Eaton BladeUPS 8kW Rack-mountable UPS

Manufacturer Part No. : ZC0811108100000

UPC : 743172068415

6U Rack-mountable - 9 Minute Stand-by - 208 V AC Input - 208 V AC Output

General Information

Manufacturer: Eaton Corporation

Manufacturer Part Number: ZC0811108100000

Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica

Brand Name: Eaton

Product Line: BladeUPS

Product Name: BladeUPS 8kW Rack-mountable UPS

Marketing Information: Rackmount UPS

The Eaton BladeUPS is a revolutionary power quality solution that is scalable and modular. BladeUPS rackmount uninterruptible power supply expands power protection from 8 to 60 kW in a single 19-inch rack while reducing energy and cooling costs.

Eaton also offers BladeUPS Preassembled Systems, the same great product, just simplified. All you have to do is bring power to the unit and perform the simple start-up procedure. Top and bottom entry models are available.

Product Type: Double Conversion Online UPS

Technical Information

Plug/Connector Type: NEMA L21-30P

Receptacle Type: NEMA L21-30R

Bypass Switch: Optional

Power Description

Load Capacity (Watt): 8 kW

Input Voltage: 208 V AC

Output Voltage: 208 V AC

Circuit Breaker: Yes

Management

Network Management: SNMP Manageable

Battery Management: ABM three-stage charging technology

Interfaces/Ports

Total Number of Expansion Slots: 1

Battery Information

Battery Chemistry: Lead Acid

Backup/Run Time (Full Load): 9 Minute

Backup/Run Time (Half Load): 23 Minute

Hot Swappable: Yes

Environmental Conditions

Sound Emission (A-Weighted): 60 dB(A)

Thermal Dissipation: 900.81 BTU/h

Physical Characteristics

Height: 10.50″ (266.70 mm)

Width: 17.30″ (439.42 mm)

Depth: 28″ (711.20 mm)

Rack Height: 6U

Form Factor: Rack-mountable

Weight (Approximate): 141.07 kg

Miscellaneous

Package Contents:

BladeUPS 8kW Rack-mountable UPS
Software Suite CD
PowerXpert Gateway Series UPS Card

Certifications & Standards:

UL1778
cUL
FCC Part15 Class A
ANSI C62.41
Cat B-3

Country of Origin: United States

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 18 Month

UPS Service Canada ships this part across Canada, with optional on-site installation by qualified technicians. Request a quote or call 1 (438) 800-0382.

Additional information

Weight	311.00 lbs
Dimensions	28.00 × 17.30 × 10.50 in
